• IBUTTON and RFID Reader Writer TMR-R-V4.0

    ibutton tm1990 card

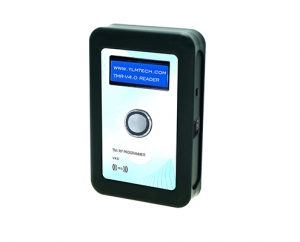

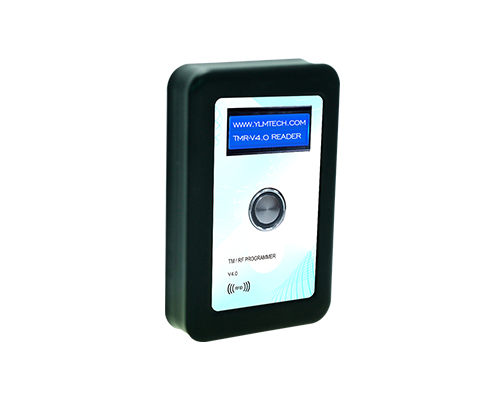

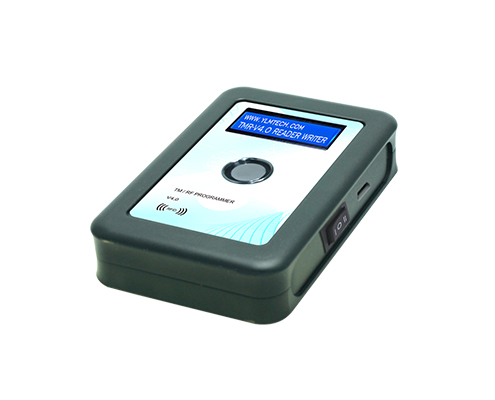

TMR-R-V4.0 Ibutton and RFID Reader Writer

Product Model: TMR-R-V4.0

  • Material: Plastic/ABS
  • With display, English/Russian optional
  • Reads and Write Ibutton & RFID ‘s ID number.
  • Use T5577/5200/5201/MINI57 Copy EM4100/TK4100 ID number
  • Use RW1990 Copy DS1990/TM1990 ID number
  • LCD: With LCD Screen
  • Plastic casing Color: black
  • Size: 120*80*25mm
  • All metal parts are chromium-plated
  • Weight:185g/pcs.
  • Working Temperature: -10 º – 70 ºC
  • Waterproof, but not suitable for hard environmental conditions
  • OEM,ODM service supplied(from moulding to production)

TMR-R-V4.0 Performance

  • TMR-V4.0 Ibutton&RFID Reader Writer Application:
    Connect to PC in card reader mode, transfer ID number directly to PC message box (WORD, TXT, XLS) without driver.
    Duplicator mode connects to PC for power

    Card reader:
    1. After power on, the red and green lights are always on, and the buzzer BI one sound.
    2. DALLAS card serial number read out, automatic carriage return, buzzer BI a sound, the green light flashes once
    (The same number is only output once)

    Duplicator:
    1. After power on, the red light is always on, buzzer BI a long sound. 2.
    2, after reading the card buzzer BI a sound, the green light flashes, into the waiting to copy, copy the success of the red and green lights flash at the same time, the buzzer BI a sound, the green light flashes back to wait for the copy of the second card (if the copy fails to red light continues to flash for 2 seconds (buzzer BI – BI two error messages) and then return to wait for the copy state)
    3. Power off and restart when copying another mother card.
